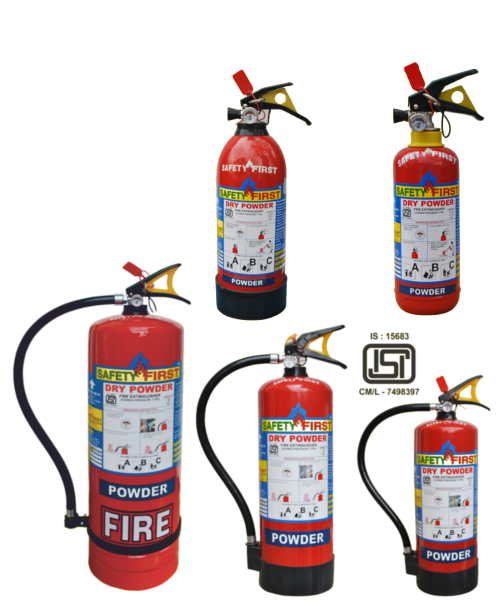

ABC STORED PRESSURE TYPE FIRE EXTINGUISHERS

ISI mark ABC type fire extinguisher covers A, B, & C class of fires which includes paper, wood, cloth, rubber, plastic & inflammable liquids like oil, petrol, paints, petrochemical products, resins, gases in the compressed form like oxygen, acetylenes, LP & CNG, electrical & sophisticated electrical equipments.
TECHNICAL SPECIFICATION
FIRE EXTINGUISHER CAPACITY 1kg 2kg 4kg 6kg 9kg
MINIMUM PERIOD FOR WHICH IS-15683 IS-15683 IS-15683 IS-15683 IS-15683
THROW OF JET MAINTAINED 8 sec 8 sec 16 sec 20 sec 25 sec
MINIMUM PERIOD TO DISCHARGE - - - - -
AT LEAST 90% OF CONTESTS 12 sec. 16 sec. 20 sec. 25 sec. 30 sec.
RANGE OF JET 2 mtr. 3 mtr. 4 mtr. 6 mtr. 7 mtr.
EMPTY WT. (approx) 1 kg 2.3 kg 2.75 kg 3.3 kg 5.35 kg
FULL WT. (approx) 2 kg 3.3 kg 6.75 kg 9.3 kg 14.35 kg
FIRE RATING 1 A, 8 B 1 A, 8 B 2 A, 21 B 3 A, 34 B 3 A, 34 B
WORKING PRESSURE 15 kgf/cm2 15 kgf/cm2 15 kgf/cm2 15 kgf/cm2 15 kgf/cm2
HYDRO PRESSURE 35 kgf/cm2 35 kgf/cm2 35 kgf/cm2 35 kgf/cm2 35 kgf/cm2
BRUSTING PRESSURE 55 kgf/cm2 55 kgf/cm2 55 kgf/cm2 55 kgf/cm2 55 kgf/cm2

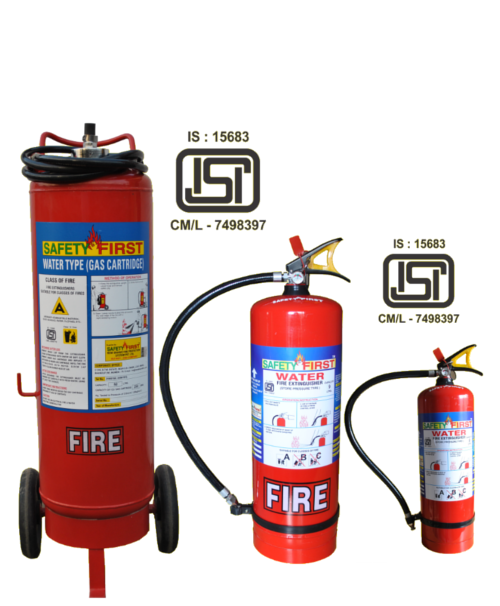

WATER TYPE FIRE EXTINGUISHERS

ISI mark water type fire extinguishers provides safety against 'A' class of fire which involves materials like wood, paper, cloth, plastic, fibre & rubber, etc.,
TECHNICAL SPECIFICATION
FIRE EXTINGUISHER CAPACITY 6 litre
stored pressure
9 litre
stored pressure
9 litre
catridge type
50 litre
MINIMUM PERIOD FOR WHICH IS-15683 IS-15683 IS-15683 IS-13385
THROW OF JET MAINTAINED 25 sec 100 sec 60 sec 60 sec
MINIMUM PERIOD TO DISCHARGE - - - -
AT LEAST 90% OF CONTESTS 60 sec. 120 sec. 180 sec. 180 sec.
RANGE OF JET 4 mtr. 6 mtr. 10 mtr. 10 mtr.
EMPTY WT. (approx) 03.20 kg 05.35 kg 35.00 kg 35.00 kg
FULL WT. (approx) 09.20 kg 14.35 kg 80.00 kg 80.00 kg
FIRE RATING 3 A 3 A 3 A NA
WORKING PRESSURE 15 kgf/cm2 15 kgf/cm2 15 kgf/cm2 15 kgf/cm2
HYDRO PRESSURE 35 kgf/cm2 35 kgf/cm2 30 kgf/cm2 30 kgf/cm2
BRUSTING PRESSURE 55 kgf/cm2 55 kgf/cm2 45 kgf/cm2 45 kgf/cm2

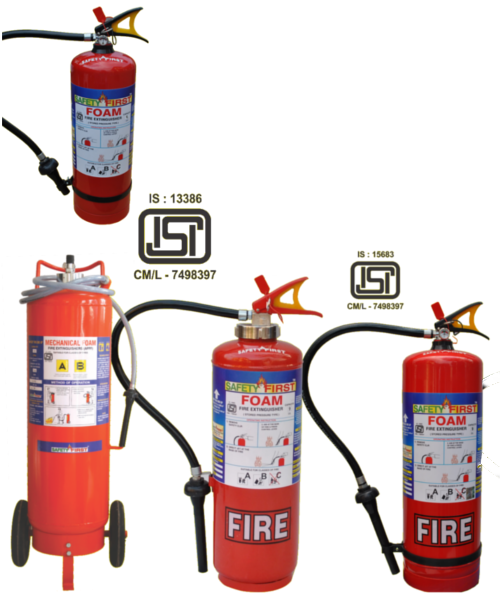

MECHANICAL FOAM TYPE FIRE EXTINGUISHERS

ISI mark foam type fire extinguisher is designed to extinguish 'A' & 'B' class of fire involving wood, paper, cloth, textile, stationery, flammable and volatile liquids like oil, petrol, kerosene, solvent, chemicals, wax, resins, etc.,
TECHNICAL SPECIFICATION
FIRE EXTINGUISHER CAPACITY 6 litre
stored pressure
9 litre
stored pressure
9 litre
catridge type
50 litre
MINIMUM PERIOD FOR WHICH IS-15683 IS-15683 IS-15683 IS-13385
THROW OF JET MAINTAINED 35 sec 35 sec 35 sec 40 sec
MINIMUM PERIOD TO DISCHARGE - - - -
AT LEAST 90% OF CONTESTS 25 sec. 60 sec. 60 sec. 180 sec.
RANGE OF JET 6 mtr. 3 mtr. 6 mtr. 10 mtr.
EMPTY WT. (approx) 03.20 kg 05.35 kg 07.00 kg 35.00 kg
FULL WT. (approx) 09.20 kg 14.35 kg 16.00 kg 80.00 kg
FIRE RATING 2 A, 34 B 3 A, 34 B 4 A, 55 B NA
WORKING PRESSURE 15 kgf/cm2 15 kgf/cm2 15 kgf/cm2 15 kgf/cm2
HYDRO PRESSURE 35 kgf/cm2 35 kgf/cm2 35 kgf/cm2 30 kgf/cm2
BRUSTING PRESSURE 55 kgf/cm2 55 kgf/cm2 55 kgf/cm2 45 kgf/cm2

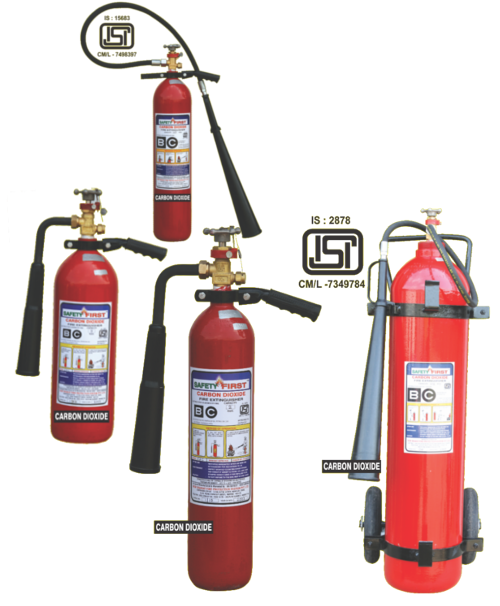

CARBON DIOXIDE TYPE FIRE EXTINGUISHERS

ISI mark carbon dioxide type fire extinguisher are suitable for 'B' & 'C' class fires involving all flammable liquids, gases, live & delicate, machinery fires, electrical & sophisticated electronic equipment fires, transformer & switch gear fire. This extinguisher is approved by explosive department, Govt. of India, Nagpur. The new CO2 squeeze grip type portable fire extinguisher from safety fire is also available.
TECHNICAL SPECIFICATION
FIRE EXTINGUISHER CAPACITY 2 kg 3 kg 4.5 kg 6.5 kg 9 kg 22.5 kg
MINIMUM PERIOD FOR WHICH IS-15683 IS-15683 IS-15683 IS-2878 IS-2878 IS-2878
THROW OF JET MAINTAINED 8 sec 8 sec 8 sec 10 sec 15 sec 20 sec
MINIMUM PERIOD TO DISCHARGE - - - - - -
AT LEAST 90% OF CONTESTS 10 sec. 16 sec. 20 sec. 20 sec. 36 sec. 60 sec.
RANGE OF JET 2 mtr. 3 mtr. 3 mtr. 4 mtr. 4 mtr. 4 mtr.
EMPTY WT. (approx) 6.20 kg 9.50 kg 12.50 kg 20.00 kg 26.00 kg 43.50 kg
FULL WT. (approx) 8.20 kg 12.50 kg 17.00 kg 26.50 kg 35.00 kg 66.00 kg
FIRE RATING 13 B 21 B 21 B NA NA NA
WORKING PRESSURE 60 kgf/cm2 60 kgf/cm2 60 kgf/cm2 60 kgf/cm2 60 kgf/cm2 60 kgf/cm2
HYDRO PRESSURE 250 kgf/cm2 250 kgf/cm2 250 kgf/cm2 250 kgf/cm2 250 kgf/cm2 250 kgf/cm2
BRUSTING PRESSURE 600 kgf/cm2 600 kgf/cm2 600 kgf/cm2 600 kgf/cm2 600 kgf/cm2 600 kgf/cm2

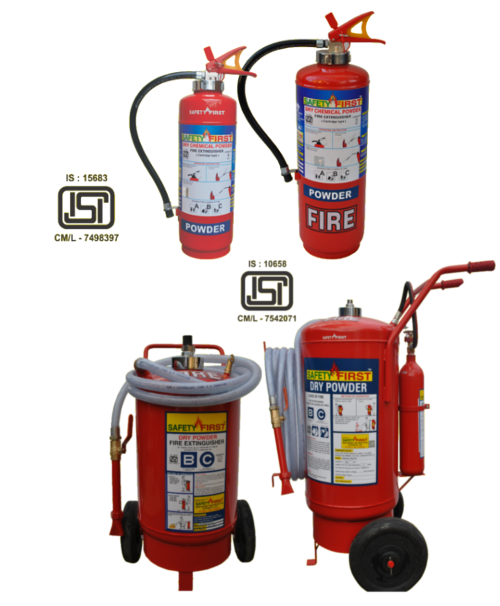

DRY CHEMICAL POWDER TYPE FIRE EXTINGUISHERS

ISI mark Dry Chemical Fire Extinguisher control 'A', 'B', & 'C' class of fire like wood, paper, cloth, oil, and petroleum product, solvents, paints, varnishes, chemical liquids. All flammable liquids & electrical fire & gas fire, etc.,
TECHNICAL SPECIFICATION
FIRE EXTINGUISHER CAPACITY 4 kg 6 kg (ABC) 9 kg (ABC) 25 kg 50 kg 75 kg
MINIMUM PERIOD FOR WHICH IS-15683 IS-15683 IS-15683 IS-10658 IS-10658 IS-10658
THROW OF JET MAINTAINED 20 sec 20 sec 25 sec 25 sec 40 sec 50 sec
MINIMUM PERIOD TO DISCHARGE - - - - - -
AT LEAST 90% OF CONTESTS 25 sec. 25 sec. 30 sec. 30 sec. 50 sec. 60 sec.
RANGE OF JET 4 mtr. 4 mtr. 6 mtr. 6 mtr. 8 mtr. 10 mtr.
EMPTY WT. (approx) 4.20 kg 5.20 kg 7.05 kg 30 kg 60 kg 75 kg
FULL WT. (approx) 8.20 kg 11.20 kg 16.05 kg 55.00 kg 110.00 kg 150.00 kg
FIRE RATING 2 A, 21 B 3 A, 34 B 4 A, 34 B NA NA NA
WORKING PRESSURE 15 kgf/cm2 15 kgf/cm2 15 kgf/cm2 15 kgf/cm2 15 kgf/cm2 15 kgf/cm2
HYDRO PRESSURE 35 kgf/cm2 35 kgf/cm2 35 kgf/cm2 30 kgf/cm2 30 kgf/cm2 30 kgf/cm2
BRUSTING PRESSURE 55 kgf/cm2 55 kgf/cm2 55 kgf/cm2 45 kgf/cm2 45 kgf/cm2 45 kgf/cm2

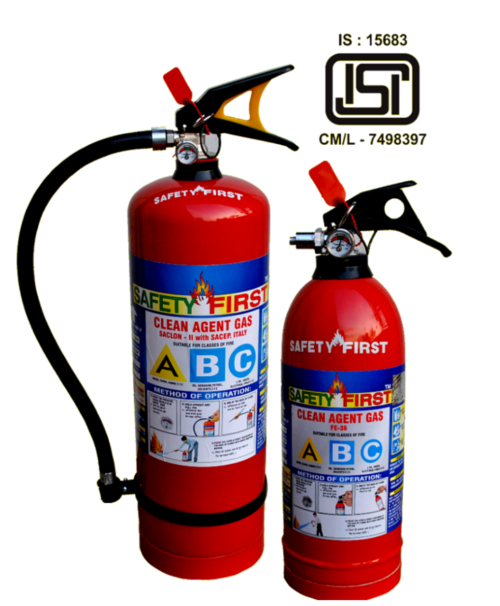

CLEAN AGENT TYPE FIRE EXTINGUISHERS

Suitable for 'A', 'B', & 'C' class fire. Can be used in computer room, telecommunications facilities, laboratories, hospital, offices, server rooms, call centers, banks, ships, etc.,
TECHNICAL SPECIFICATION
FIRE EXTINGUISHER CAPACITY 1 kg 2 kg 4 kg 6 kg
MINIMUM PERIOD FOR WHICH - IS-15683 IS-15683 IS-15683
THROW OF JET MAINTAINED 8 sec 8 sec 16 sec 20 sec
MINIMUM PERIOD TO DISCHARGE - - - -
AT LEAST 90% OF CONTESTS 10 sec. 16 sec. 20 sec. 25 sec.
RANGE OF JET - 1 mtr. 1 mtr. 2 mtr.
EMPTY WT. (approx) 1.20 kg 2.30 kg 2.75 kg 3.30 kg
FULL WT. (approx) 2.20 kg 4.30 kg 6.75 kg 9.30 kg
FIRE RATING 8 B 13 B 1 A, 21 B 1 A, 34 B
WORKING PRESSURE 15 kgf/cm2 15 kgf/cm2 15 kgf/cm2 15 kgf/cm2
HYDRO PRESSURE 35 kgf/cm2 35 kgf/cm2 35 kgf/cm2 35 kgf/cm2
BRUSTING PRESSURE 55 kgf/cm2 55 kgf/cm2 55 kgf/cm2 55 kgf/cm2
